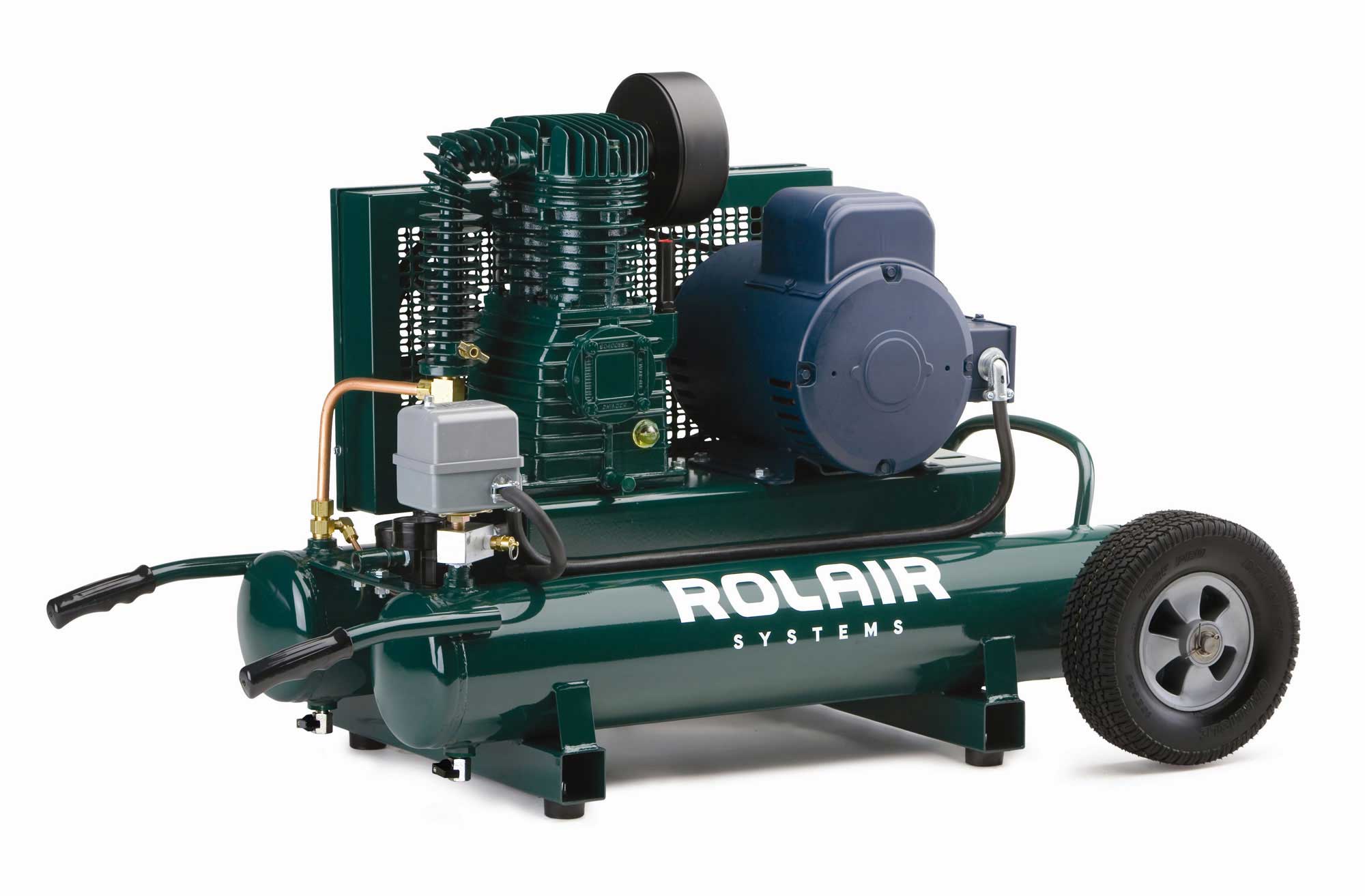

3095K18 Wheeled Electric Air Compressors
Model 3095K18 is the go-to choice when 230 Volt power is available. Delivering 12.5 CFM @ 90 PSI, the 3095K18 puts out more air than any other single stage portable electric air compressor in our line-up.
Optional Equipment: Filter-Regulator-Lubricator Sets, Dual Control Operation, 20 Gallon Tank
ABOUT THE PUMP
- Heavy-Duty
- Single Stage
- Cast-Iron Twin Cylinders
- Ball Bearings
- Splash Lubricated
- Cast-Iron Valve Plates with Swedish Lamellar Reed Valves
- Aluminum Alloy Connecting Rods with Automotive-Style Inserts
- Multi-Finned 11" Flywheel
- Oil Sight Gauge
ABOUT THE MOTOR
- 3 HP
- 1740 RPM
- Open Drip Proof
- 230 Volt – 60 Hz
- Ball Bearings
- Overload Protection with Manual Reset
STANDARD EQUIPMENT
- Pressure Gauge 0-200 in 5 lb. Graduations
- Square D Pressure Switch with Unloader
- Accessory Support Clip
- Intake Filter with Silencer and Replaceable Element
- Air-Cooled Aftercooler
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve.
Specifications
| Horse Power | 3 HP |
| CFM Displaced | 17.2 CFM |
| CFM Delivered | 12.5 CFM @ 90 PSI |
| Pump/Motor RPM | 1740 |
| Overload Protection | Yes (Manual Reset Standard) |
| Lubrication Type | Splash Lubrication |
| Pump Oil Capacity | 34 oz. |
| Reed Valve System | Yes (Standard) |
| Number of Cylinders | 2 |
| Tank Capacity | 9 Gallons |
| L X W X H | 46"x27"x29" |
| Decibel Rating | Unavailable |
| Country Of Origin | Compressor Origin.pdf |
| Shipping Weight | 245 lb. |
| Shipping Dimensions (L X W X H) | 47" x 22" x 36" |
